Product Summary

The TL7702ACDR is a high-performance PMIC.

Parametrics

TL7702ACDR Parametrics:

Packaging   Tape & Reel (TR)
Type Simple Reset/Power-On Reset
Number of Voltages Monitored 1
Output Complementary
Reset Active High/Active Low
Reset Timeout 1 μs Maximum Propagation Delay
Voltage - Threshold 2.53V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Dynamic Catalog Simple Reset/Power-On Reset
Other Names 296-1295-2

Features

TL7702ACDR Features:

  •  Power-On Reset Generator
  •  Automatic Reset Generation After Voltage Drop
  •  Wide Supply-Voltage Range
  •  Precision Voltage Sensor
  •  Temperature-Compensated Voltage Reference
  •  True and Complement Reset Outputs
  •  Externally Adjustable Pulse Duration


Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

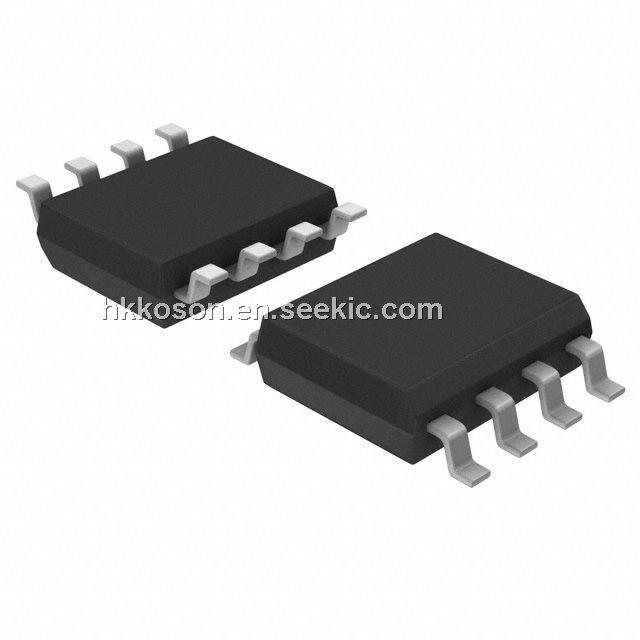

TL7702ACDR
TL7702ACDR
Texas Instruments
Supervisory Circuits 2.53V Monitor
Data Sheet
0-1: $0.37
1-25: $0.29
25-100: $0.25
100-250: $0.22
TL7702ACDRE4
TL7702ACDRE4
Texas Instruments
Supervisory Circuits Sngl SVS W/Prg UV Th & Reset Time Delay
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.22
100-250: $0.19
TL7702ACDRG4
TL7702ACDRG4
Texas Instruments
Supervisory Circuits Sngl SVS W/Prg UV Th & Reset Time Delay
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.22
100-250: $0.19
