Product Summary

The TLC7528CN is dual, 8-bit, digital-to-analog converters (DACs) designed with separate on-chip data latches and feature

exceptionally close DAC-to-DAC matching. Data are transferred to either of the two DACdata latches through a common, 8-bit,

input port.

Parametrics

TLC7528CN Parametrics:

Packaging Tube
Settling Time 100ns
Number of Bits 8
Data Interface Parallel
Number of Converters 2
Voltage Supply Source Single Supply
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Package/Case 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-PDIP
Number of Outputs and Type 2 Current, Bipolar
Sampling Rate (Per Second) -
Dynamic Catalog 8 Bit
Other Names 296-1871
296-1871-5

Features

TLC7528CN Features:


  • Easily Interfaced to Microprocessors
  •  On-Chip Data Latches
  •  Monotonic Over the Entire A/D Conversion Range
  •  Interchangeable With Analog Devices AD7528 and PMI PM-7528
  •  Voltage-Mode Operation
  •  CMOS Technology
  •  Fast Control Signaling for Digital Signal Processor (DSP) Applications Including Interface With TMS320

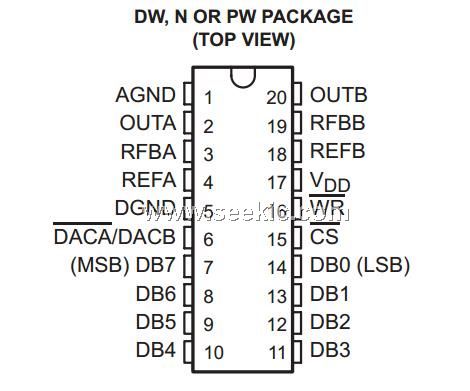

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

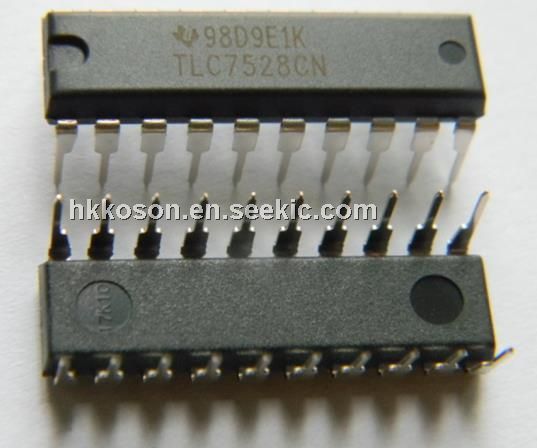

TLC7528CN
TLC7528CN
Texas Instruments
DAC (D/A Converters) Dual 8bit Mult
Data Sheet
0-1: $2.02
1-25: $1.85
25-100: $1.48
100-250: $1.30
TLC7528CNE4
TLC7528CNE4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1: $2.08
1-25: $1.71
25-100: $1.49
100-250: $1.30
TLC7528CNS
TLC7528CNS
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1: $2.52
1-25: $2.06
25-100: $1.81
100-250: $1.58
TLC7528CNSG4
TLC7528CNSG4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1: $2.52
1-25: $2.06
25-100: $1.81
100-250: $1.58
TLC7528CNSR
TLC7528CNSR
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1480: $1.13
1480-2000: $1.09
2000-5000: $1.04
TLC7528CNSRG4
TLC7528CNSRG4
Texas Instruments
DAC (D/A Converters) 8-Bit 0.1 us Dual MDAC
Data Sheet
0-1480: $1.13
1480-2000: $1.09
2000-5000: $1.04
