Product Summary
The TOP258PN is a high-performance Enhanced EcoSmart?, Integrated Off-Line Switcher with Advanced Feature Set and
Extended Power Range
Parametrics
TOP258PN Parametrics:
Packaging
Tube
Output Isolation
Isolated
Frequency Range
119kHz ~ 145kHz
Voltage - Input
-
Voltage - Breakdown
700V
Voltage - Output
-
Power (Watts)
77W
Operating Temperature
-40°C ~ 150°C
Package / Case
8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package
DIP-8C
For Use With
Other Names
596-1189-5
Features
TOP258PN Features:
Lower System Cost, Higher Design Flexibility
? Multi-mode operation maximizes efficiency at all loads
? Line undervoltage (UV) detection prevents turn-off glitches
? Line overvoltage (OV) shutdown extends line surge limit
? Accurate programmable current limit
? Optimized line feed-forward for line ripple rejection
? Frequency jittering reduces EMI filter cost
? Heat sink is connected to SOURCE for low EMI
? Improved auto-restart delivers <3% of maximum power in short circuit and open loop fault conditions
? Accurate hysteretic thermal shutdown function automatically recovers without requiring a reset
? Fully integrated soft-start for minimum start-up stress
? Extended creepage between DRAIN and all other pins improves field reliability
? etc

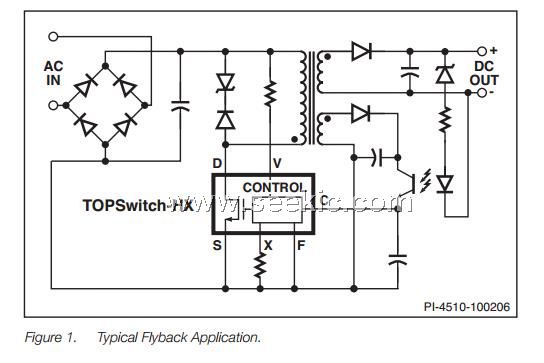

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

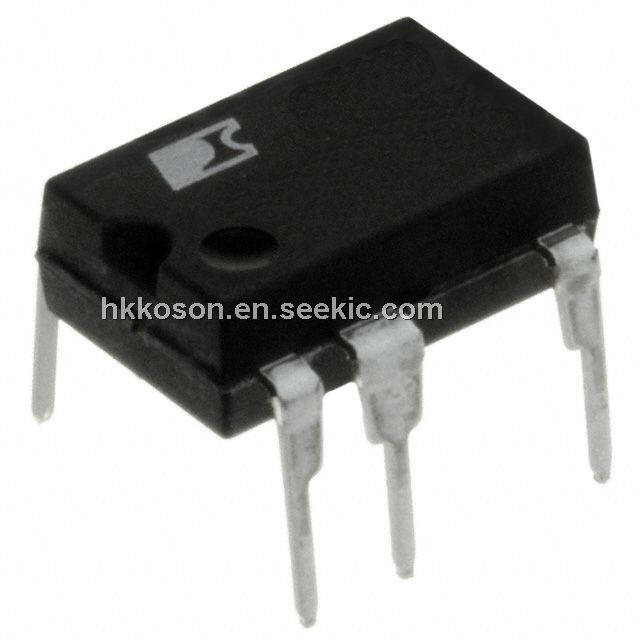

 TOP258PN |
Power Integrations |
AC/DC Switching Converters Off-Line Switcher IC 35W/50W PK |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
TOP200-14 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TOP200-4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TOP200YAI |
Power Integrations |
AC/DC Switching Converters 5-12W 85-265 VAC 10-25W100/115/230VAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TOP200YN |
Power Integrations |
AC/DC Switching Converters 5-12W 85-265 VAC 10-25W100/115/230VAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TOP201YAI |
Power Integrations |
AC/DC Switching Converters 0-22W 85-265 VAC 20-45W100/115/230VAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TOP201YN |
Power Integrations |
AC/DC Switching Converters 0-22W 85-265 VAC 20-45W100/115/230VAC |
Data Sheet |
Negotiable |
|
||||||||||||
