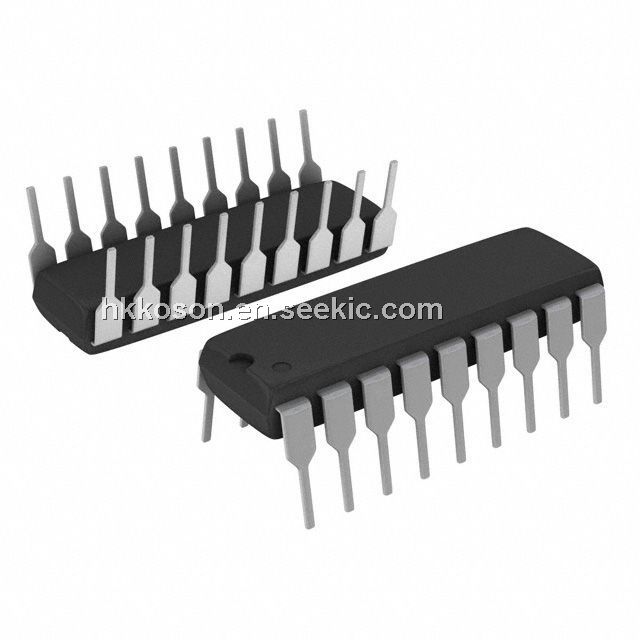

Product Summary
The UC3637N is a high-performance Switched Mode Controller for DC Motor Drive.
Parametrics
UC3637N Parametrics:
Packaging
Tube
Motor Type - Stepper
-
Motor Type - AC, DC
Brushed DC
Function
Controller - Commutation, Direction Management
Output Configuration
Pre-Driver
Interface
Parallel
Applications
General Purpose
Current - Output
-
Voltage - Supply
2.5 V ~ 20 V
Voltage - Load
-
Operating Temperature
0°C ~ 70°C
Mounting Type
Through Hole
Package / Case
18-DIP (0.300", 7.62mm)
Supplier Device Package
18-PDIP
Dynamic Catalog
Controllers
Other Names
296-11237-5
Features
UC3637N Features:
? Single or Dual Supply Operation
? ±2.5V to ±20V Input Supply Range
? ±5% Initial Oscillator Accuracy; ± 10% OverTemperature
? Pulse-by-Pulse Current Limiting
? Under-Voltage Lockout
? Shutdown Input with Temperature Compensated 2.5V Threshold
? Uncommitted PWM Comparators for Design Flexibility
? Dual 100mA, Source/Sink Output Drivers

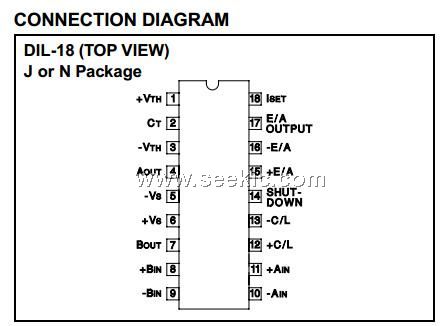

Diagrams
