Product Summary

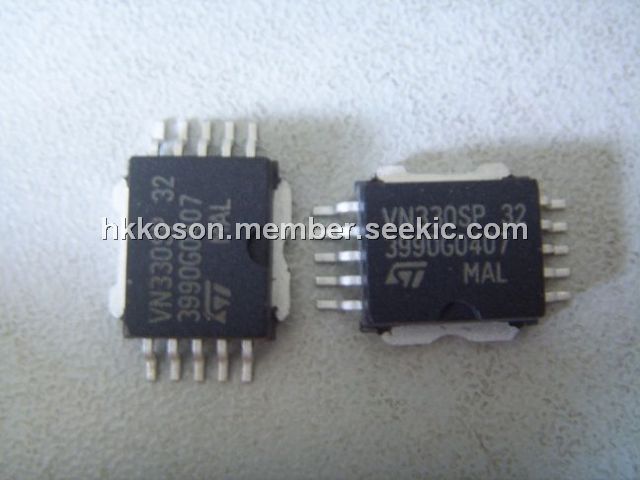

The VN330SP is a quad high side smart power solid state relay. The VN330SP is a monolithic device made using STMicroelectronics VIPower Technology, intended for driving four indipendent resistive or inductive loads with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from over temperature and short circuit. The open drain diagnostic output of the VN330SP indicates short circuit and overtemperature conditions.
Parametrics
VN330SP absolute maximum ratings: (1)VCC Power Supply Voltage: 45 V; (2)-VCC Reverse Supply Voltage: -0.3 V; (3)IR Reverse Output Current (per channel): -6 A; (4)IIN Input Current (per channel): ±10 mA; (5)IDIAG DIAG Pin Current: ±10 mA; (6)VESD Electrostatic Discharge (1.5 kW, 100 pF): 2000 V; (7)EAS Single Pulse Avalanche Energy per Channel Not Symultaneously: 400 mJ; (8)Ptot Power Dissipation at Tc ≤ 25℃: Internally Limited W; (9)Tj Junction Operating Temperature: Internally Limited℃; (10)Tstg Storage Temperature: -55 to 150℃.
Features
VN330SP features: (1)Output current: 0.7A PER channel; (2)Digital inputs clamped at 32V minimum voltage; (3)Shorted load and overtemperature protections; (4)Built-icurrent limiter; (5)Under voltage shut down; (6)Opedraidiagnostic output; (7)Fast demagnetizatioof inductive loads.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VN330SP |
STMicroelectronics |
Solid State Relays Quad High Side Solid State Relay |
Data Sheet |
Negotiable |
|
||||||||||||
 |
VN330SP(8932) |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
VN330SP-E |
STMicroelectronics |
Power Driver ICs SOLID STATE RELAY |
Data Sheet |
|
|
||||||||||||
|
VN330SP13TR |
STMicroelectronics |
Power Driver ICs Quad High Side |
Data Sheet |
Negotiable |
|
||||||||||||
|
VN330SPTR-32-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Quad HiSide smart Pwr Solid St Relay |
Data Sheet |
|
|
||||||||||||
|
VN330SP-32-E |
STMicroelectronics |
Power Switch ICs - Power Distribution Quad HiSide smart Pwr Solid St Relay |
Data Sheet |
|
|
||||||||||||
|
VN330SPTR-E |
STMicroelectronics |
Power Driver ICs QUAD HIGH SIDE |
Data Sheet |
|
|
||||||||||||
