Product Summary

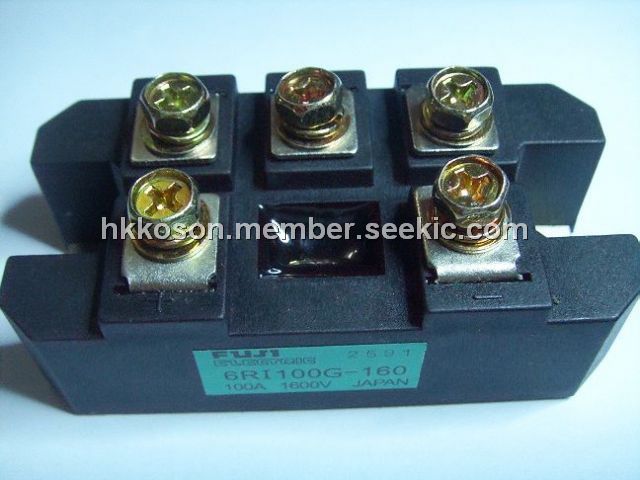

The 6RI100G-160 is a power diode module. Applications include: Inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers, general purpose DC power supply units.
Parametrics
6RI100G-160 absolute maximum ratings: (1)Repetitive peak reverse voltage: 1200 to 1600V; (2)Non repetitive peak reverse voltage: 1320 to 1760 V; (3)Average output current: 100A; (4)Surge current: 1200A; (5)Junction temperature: -40 to 150℃; (6)Storage temperature: -40 to 125℃; (7)Tightening torque: 25±5kg.cm; (8)Vibration resistance: 5G; (9)Dielectric strength: 2500VAC.
Features
6RI100G-160 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space- a cast effective feature; (2)the diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation; (3)6 diode chips are connected to the 3 phase bridge rectifying circuit inside the module a cost effective feature.

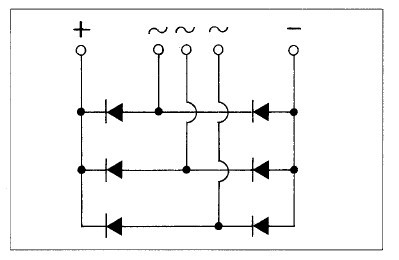

Diagrams
 |
