Product Summary

The 74HC4520D is a high-performance Logic IC .

Parametrics

74HC4520D Parametrics:

Packaging   Tape & Reel (TR)
Logic Type Binary Counter
Direction Up
Number of Elements 2
Number of Bits per Element 4
Reset Asynchronous
Timing Synchronous
Count Rate 69MHz
Trigger Type Positive, Negative
Voltage - Supply 2 V ~ 6 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Dynamic Catalog 74HC
Other Names 568-9982-2
74HC4520D,118-ND
74HC4520D-T
74HC4520D-T-ND
74HC4520D118
933714900118

Features

74HC4520D Features:

? Output capability: standard
? ICC category: MSI




Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

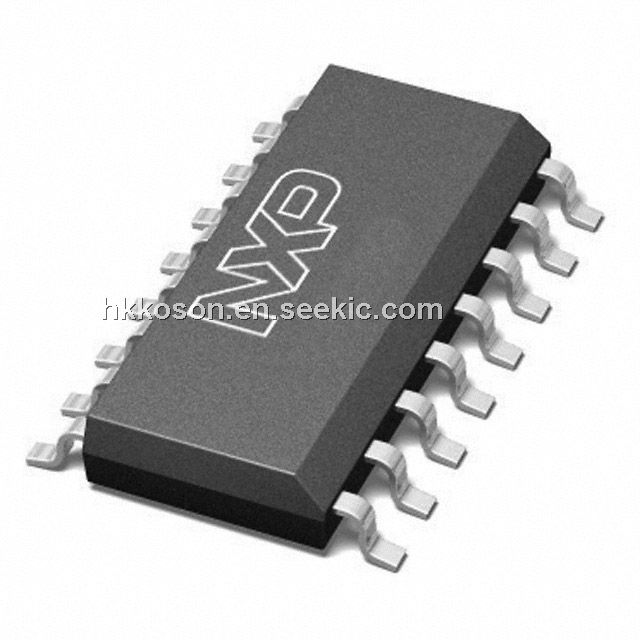

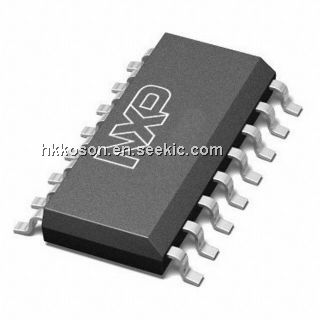

74HC4520D
74HC4520D
NXP Semiconductors
Counter ICs DUAL 4-BIT SYNC BINARY COUNTER
Data Sheet
Negotiable
74HC4520D,112
74HC4520D,112
NXP Semiconductors
Counter ICs DUAL 4-BIT SYNC
Data Sheet
0-1: $0.32
1-25: $0.29
25-100: $0.25
100-250: $0.22
74HC4520DB,112
74HC4520DB,112
NXP Semiconductors
Counter ICs DUAL 4B BIN RIP CNTR
Data Sheet
0-1: $0.34
1-25: $0.31
25-100: $0.29
100-250: $0.28
74HC4520DB,118
74HC4520DB,118
NXP Semiconductors
Counter ICs DUAL 4-BIT SYNC BINARY COUNTER
Data Sheet
0-1450: $0.27
1450-2000: $0.27
2000-3000: $0.25
3000-6000: $0.24
74HC4520DB
74HC4520DB
NXP Semiconductors
Counter ICs DUAL 4B BIN RIP CNTR SYNCHRONOUS
Data Sheet
Negotiable
74HC4520D,118
74HC4520D,118
NXP Semiconductors
Counter Shift Registers DUAL 4-BIT SYNC
Data Sheet
0-1: $0.19
1-25: $0.18
25-100: $0.15
100-250: $0.14
74HC4520D-T
74HC4520D-T
NXP Semiconductors
Counter ICs DUAL 4-BIT SYNC BINARY COUNTER
Data Sheet
Negotiable
