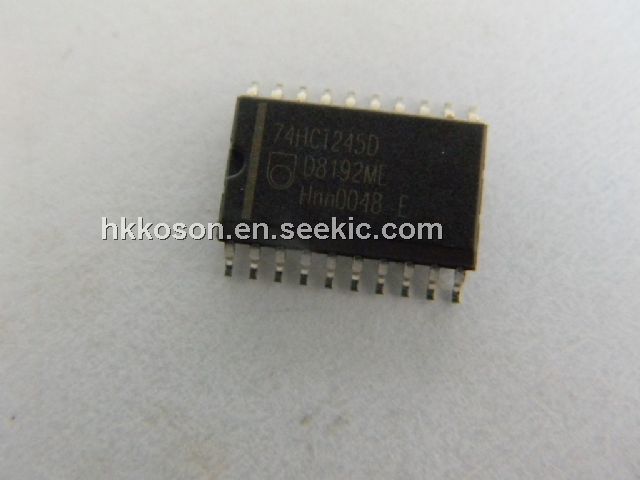

Product Summary

    The 74HCT245D is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL).

    The 74HCT245D is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive

directions. The 74HCT245D features an output enable input (OE) for easy cascading and a send/receive input (DIR)

for direction control. OE controls the outputs so that the buses are effectively isolated.


Parametrics

74HCT245D Parametrics:

Series 74HCT
Packaging   Tape & Reel (TR)
Logic Type Transceiver, Non-Inverting
Number of Elements 1
Number of Bits per Element 8
Current - Output High, Low 6mA, 6mA
Voltage - Supply 4.5 V ~ 5.5 V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package/Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SO
Dynamic Catalog 74HCT
Other Names 568-1530-2
74HCT245D-T
933713590653

Features

74HCT245D Features:

  •  Octal bidirectional bus interface
  •  Non-inverting 3-state outputs
  •  Multiple package options
  •  Complies with JEDEC standard no. 7A
  •  ESD protection:


 HBM EIA/JESD22-A114-B exceeds 2000 V

 MM EIA/JESD22-A115-A exceeds 200 V

  •  Speci?ed from ?40 °C to +85 °C and from ?40 °C to +125 °C

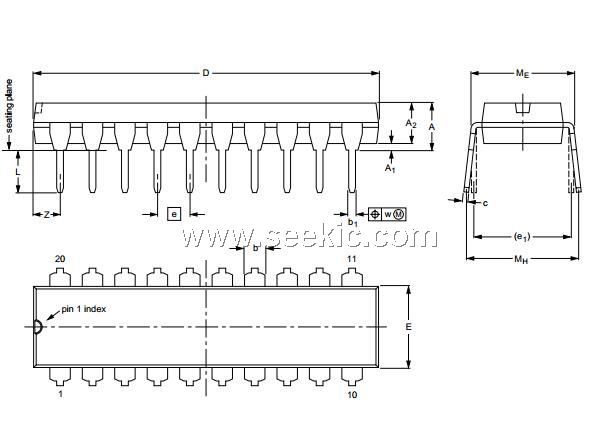

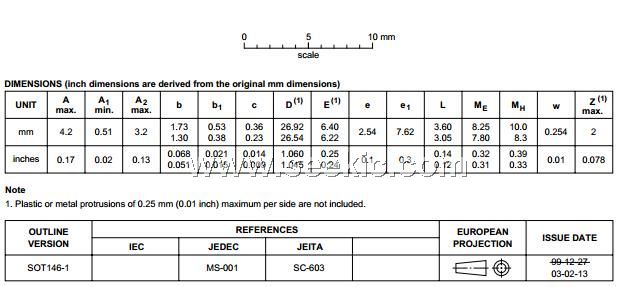

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HCT245D,652
74HCT245D,652
NXP Semiconductors
Bus Transceivers OCTAL BUS TXRX 3ST
Data Sheet
0-1: $0.27
1-25: $0.23
25-100: $0.18
100-250: $0.15
74HCT245D,653
74HCT245D,653
NXP Semiconductors
Bus Transceivers OCTAL TRANSCEIVER 3-STATE
Data Sheet
0-1: $0.27
1-25: $0.23
25-100: $0.18
100-250: $0.15
74HCT245DB,118
74HCT245DB,118
NXP Semiconductors
Bus Transceivers OCTAL TRANSCVR 3-S
Data Sheet
0-1: $0.10
1-25: $0.09
25-100: $0.09
100-250: $0.08
74HCT245DB,112
74HCT245DB,112
NXP Semiconductors
Bus Transceivers OCTAL TRANSCVR 3-S
Data Sheet
0-1: $0.22
1-25: $0.20
25-100: $0.18
100-250: $0.18
74HCT245DB-T
74HCT245DB-T
NXP Semiconductors
Bus Transceivers OCTAL TRANSCVR 3-S
Data Sheet
Negotiable
74HCT245DTR2G
74HCT245DTR2G
ON Semiconductor
Bus Transceivers OCTAL BUS TRANSCEIVER
Data Sheet
Negotiable
