Product Summary

The AD421BRZ is a complete, loop-powered digital converter.


Parametrics

AD421BRZ Parametrics:

Packaging Tube
Type DAC
Resolution (Bits) 16 b
Sampling Rate (Per Second) -
Data Interface MICROWIRE?, Serial
Voltage Supply Source Single Supply
Voltage - Supply 3V, 3.3V, 5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount

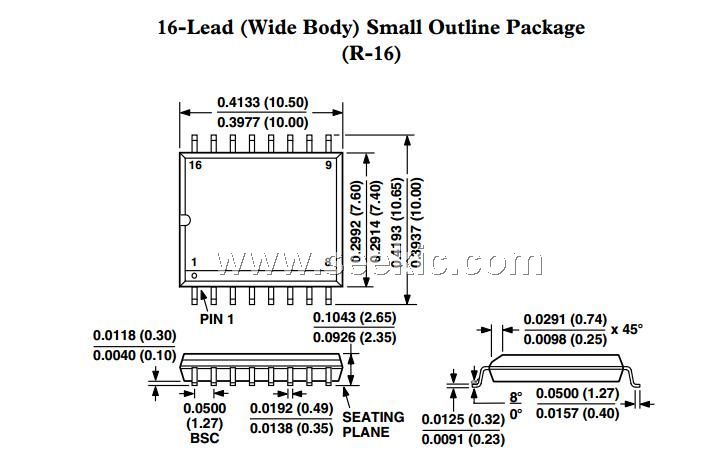

Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC W
Dynamic Catalog ADC, DAC


Features

AD421BRZ Features:


  • HART?Compatible
  • 16-Bit Resolution and Monotonicity
  • 0.01% Integral Nonlinearity
  • 2.5 V and 1.25 V Precision Reference
  • 750 A Quiescent Current max
  • Programmable Alarm Current Capability
  • Flexible High Speed Serial Interface
  • 16-Lead SOIC


Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

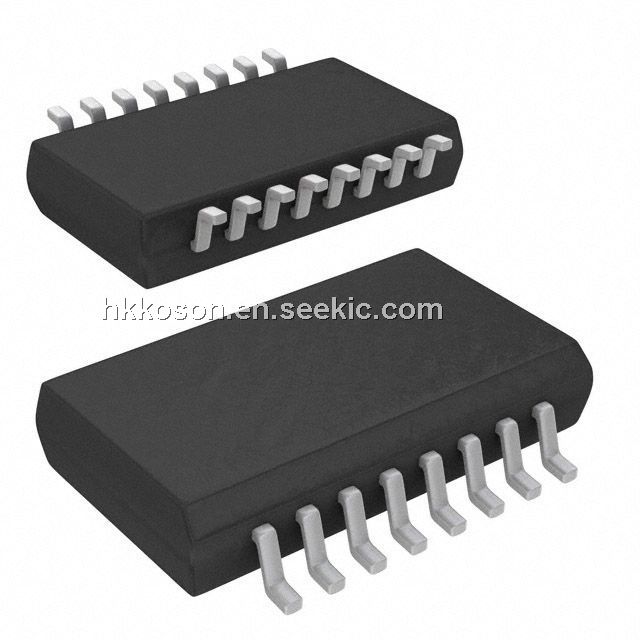

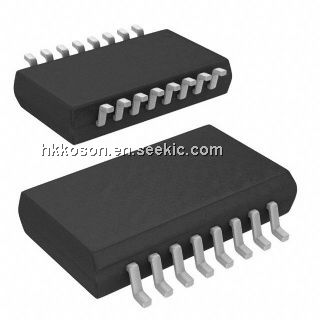

AD421BRZ
AD421BRZ

IC DAC SRL 16BIT 16-SOIC
Data Sheet
0-1: $8.32
1-10: $7.56
10-100: $6.43
100-250: $5.86
250-500: $5.48
500-1000: $5.04
AD421BRZRL
AD421BRZRL

IC DAC 16BIT LOOP 4-20MA 16SOIC
Data Sheet
0-1000: $5.04
AD421BRZRL7
AD421BRZRL7

IC DAC 16BIT LOOP 4-20MA 16SOIC
Data Sheet
0-1: $8.58
1-10: $7.79
10-25: $7.22
25-100: $6.62
