Product Summary

The AD9762AR is a high-performance 12-Bit, 125 MSPS TxDAC?D/A Converter.

Parametrics

AD9762AR Parametrics:

Packaging Tube
Settling Time 35ns
Number of Bits 12
Data Interface Parallel
Number of Converters 1
Voltage Supply Source Analog and Digital
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 28-SOIC (0.295", 7.50mm Width)
Supplier Device Package 28-SOIC W
Number of Outputs and Type 2 Current, Unipolar; 2 Current, Bipolar
Sampling Rate (Per Second) 125M
Dynamic Catalog 12 Bit

Features

AD9762AR Features:


  • 125 MSPS Update Rate
  • 12-Bit Resolution
  • Excellent Spurious Free Dynamic Range Performance
  • SFDR to Nyquist @ 5 MHz Output: 70 dBc
  • Differential Current Outputs: 2 mA to 20 mA
  • Power Dissipation: 175 mW @ 5 V to 45 mW @ 3 V
  • Power-Down Mode: 25 mW @ 5 V
  • On-Chip 1.20 V Reference
  • Single +5 V or +3 V Supply Operation
  • Edge-Triggered Latches


Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9762AR
AD9762AR

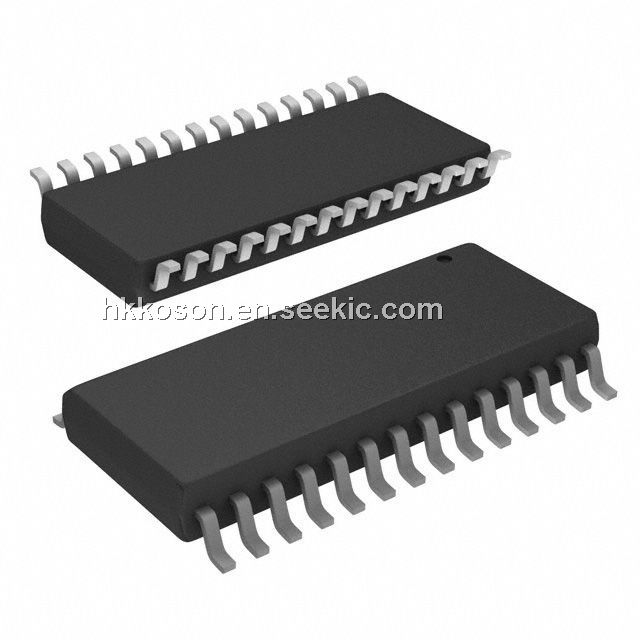

IC DAC 12BIT 125MSPS 28-SOIC
Data Sheet
0-27: $7.29
AD9762ARRL
AD9762ARRL

IC DAC 12BIT 100KSPS 28-SOIC
Data Sheet
0-1000: $5.26
AD9762ARU
AD9762ARU

IC DAC 12BIT 125MSPS 28-TSSOP
Data Sheet
0-50: $7.29
AD9762ARURL7
AD9762ARURL7

IC DAC 12BIT 100KSPS 28-TSSOP
Data Sheet
0-1000: $5.26
AD9762ARUZ
AD9762ARUZ

IC DAC 12BIT 125MSPS 28-TSSOP
Data Sheet
0-1: $7.51
1-10: $6.83
10-25: $6.31
25-100: $5.80
100-250: $5.29
250-500: $4.95
500-1000: $4.55
AD9762ARUZRL7
AD9762ARUZRL7

IC DAC 12BIT 125MSPS 28-TSSOP
Data Sheet
0-1000: $4.55
AD9762ARZ
AD9762ARZ

IC DAC 12BIT 125MSPS 28-SOIC
Data Sheet
0-1: $7.51
1-10: $6.83
10-100: $5.80
100-250: $5.29
250-500: $4.95
500-1000: $4.55
AD9762ARZRL
AD9762ARZRL

IC DAC 12BIT 125MSPS 28-SOIC
Data Sheet
0-1000: $4.55
