AL60A-300L-033F25

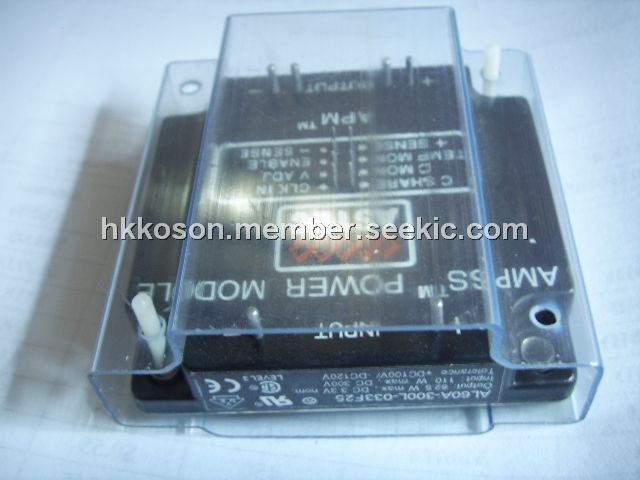

Astec Integrated Power Module, 120W, 300VIN, 3.3V, 25A, AL60A-300L-033F25

Rated 5 Rating 5 | reviews | Write a review

Price:: US $29.00~30.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $29.00~30.50

PartNumber:: AL60A-300L-033F25

Brand:: Astec America, Inc - Astec | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Winnie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-16

From Other Seller

Part Number:AL60A-300L-033F25
US $29.00 - 30.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AL60A-300L-033F25 is a Astec Integrated Power Module.

Parametrics

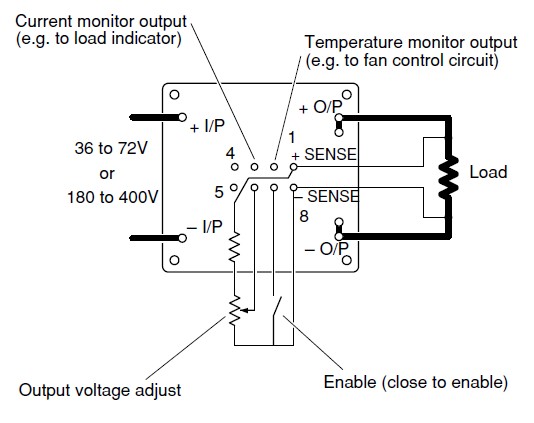

AL60A-300L-033F25 specifications: (1)Load Regulation: 0.2% typical down to no load; (2)Line Regulation: 0.1% typical; (3)Noise/Ripple: 75 mV typical (output below 5V); 2% typical(output 5V and over); (4)Remote sense: Up to 0.5V; (5)Output Voltage Adjust Range: ±10% of nominal output; (6)Transient Response: 4% typical deviation with 250μs recovery (25-75% full load); (7)Current Share Accuracy: 5% typical; (8)Overvoltage Protection: 125% nominal Vo; (9)Current Limit: 110% Io max; (10)Voltage Adjust: 90 to 110% Vo; (11)Enable: TTL compatible (low to enable); (12)Clock Input(external sync): 3.3 to 5.5Vp-p @ 1MHz ± 10%; (13)Temperature Monitor Output 10 mV/°K (2.73V = 0℃); (14)Current Monitor Output: 0 to 1mA (1mA = 100% Io Rated).

Features

AL60A-300L-033F25 features: (1)High efficiency - up to 86%; (2)500 KHz fixed frequency; (3)100℃ baseplate operating temperature (with no derating); (4)Low output ripple and noise; (5)Excellent transient response; (6)Safety isolated low voltage control and monitoring; (7)High reliability; (8)Wide input voltage range; (9)Parallelable with accurate current sharing; (10)Adjustable output voltage and current limit; (11)Regulation to zero load; (12)Temperature monitor output.
