AT89C51RC-24PU

CMOS 8-bit microcontroller, 40-DIP, 24MHz, 4 V ~ 5.5 V, AT89C51RC-24PU, ATMEL

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.85~1.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.85~1.95

PartNumber:: AT89C51RC-24PU

Brand:: ATMEL Corporation - ATMEL | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Winnie's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-13

From Other Seller

Part Number:AT89C51RC-24PU
US $1.85 - 1.95
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

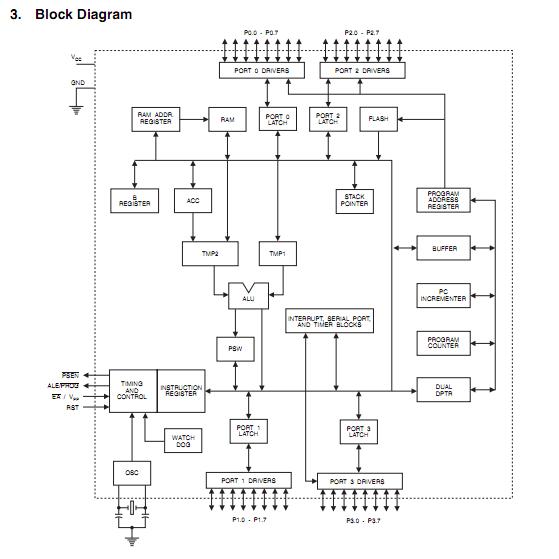

The AT89C51RC-24PU is a low-power, high-performance CMOS 8-bit microcontroller with 32K bytes of Flash programmable read-only memory and 512 bytes of RAM. The AT89C51RC-24PU is manufactured using Atmel’s high-density nonvolatile memory technology and is compatible with the industry-standard 80C51 and 80C52 instruction set and pinout. The on-chip Flash allows the program memory to be user programmed by a conventional nonvolatile memory programmer. A total of 512 bytes of internal RAM are available in the AT89C51RC-24PU. The 256-byte expanded internal RAM is accessed via MOVX instructions after clearing bit 1 in the SFR located at address 8EH. The other 256-byte RAM segment is accessed the same way as the Atmel AT89-series and other 8052-compatible products. By combining a versatile 8-bit CPU with Flash on a monolithic chip, the Atmel AT89C51RC-24PU is a powerful microcomputer which provides a highly-flexible and cost-effective solution to many embedded control applications.

Parametrics

AT89C51RC-24PU absolute maximum ratings: (1)Operating Temperature:-55 to +125℃; (2)Storage Temperature:-65 to +150℃; (3)Voltage on Any Pin with Respect to Ground:-1.0V to +7.0V; (4)Maximum Operating Voltage:6.6V; (5)DC Output Current:15.0 mA.

Features

AT89C51RC-24PU features: (1)Compatible with MCS-51 Products; (2)32K Bytes of Reprogrammable Flash Memory; (3)Endurance: 10,000 Write/Erase Cycles; (4)4V to 5.5V Operating Range; (5)Fully Static Operation: 0 Hz to 33 MHz; (6)Three-level Program Memory Lock; (7)512 x 8-bit Internal RAM; (8)32 Programmable I/O Lines; (9)Three 16-bit Timer/Counters; (10)Eight Interrupt Sources; (11)Programmable Serial Channel; (12)Low-power Idle and Power-down Modes; (13)Interrupt Recovery from Power-down Mode; (14)Hardware Watchdog Timer; (15)Dual Data Pointer; (16)Power-off Flag; (17)Green (Pb/Halide-free) Packaging Option.
