Product Summary

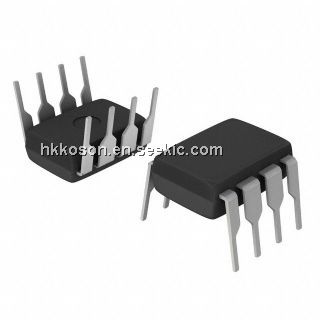

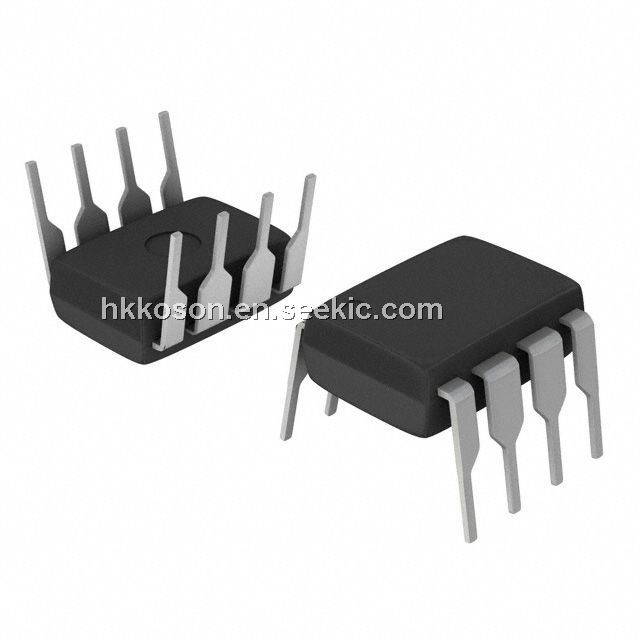

The CA3140EZ is a high-performance BiMOS Operational Amplifier.
Parametrics
CA3140EZ Parametrics:
Packaging
Tube
Amplifier Type
General Purpose
Number of Circuits
1
Output Type
-
Slew Rate
9 V/μs
Gain Bandwidth Product
4.5MHz
-3db Bandwidth
-
Current - Input Bias
10pA
Voltage - Input Offset
5mV
Current - Supply
4mA
Current - Output / Channel
40mA
Voltage - Supply, Single/Dual (±)
4 V ~ 36 V, ±2 V ~ 18 V
Operating Temperature
-55°C ~ 125°C
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-PDIP
Dynamic Catalog
General Purpose
Features
CA3140EZ Features:
? Ground-Referenced Single Supply Amplifiers in Automobile and Portable Instrumentation
? Sample and Hold Amplifiers
? Long Duration Timers/Multivibrators(μseconds-Minutes-Hours)
? Photocurrent Instrumentation
? Peak Detectors
? Active Filters
? Comparators
? Interface in 5V TTL Systems and Other Low Supply Voltage Systems
? All Standard Operational Amplifier Applications
? Function Generators
? Tone Controls
? Power Supplies
? Portable Instruments
? Intrusion Alarm Systems

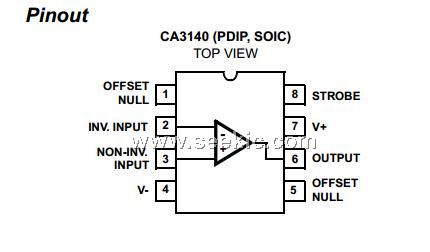

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CA3140EZ |
Intersil |
Operational Amplifiers - Op Amps W/ANNEAL OPAMP 4.5MH ZLWBIAS0.04NA8PDIPML |
