Product Summary
The ICE2QS03G is a high-performance Quasi-Resonant PWM Controller.
Parametrics
ICE2QS03G Parametrics:
Packaging
Tape & Reel (TR)
Output Isolation
Isolated
Frequency Range
52kHz
Voltage - Input
11.2 V ~ 27 V
Voltage - Breakdown
-
Voltage - Output
-
Power (Watts)
-
Operating Temperature
-25°C ~ 130°C
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
PG-DSO-8
Other Names
ICE2QS03GXUMA1
SP000775042
Features
ICE2QS03G Features:
? Quasi resonant operation till very low load
? Active burst mode operation at light/no load for low standby input power (< 100mW)
? Digital frequency reduction with decreasing load
? Power cell for VCC pre-charging with constantcurrent
? Built-in digital soft-start
? Foldback correction and cycle-by-cycle peak current limitation
? Auto restart mode for VCC Overvoltage protection
? Auto restart mode for VCC Undervoltage protection
? Auto restart mode for open loop/overload protection
? Latch-off mode for adjustable output overvoltage protection
? Latch-off mode for Short-winding protection

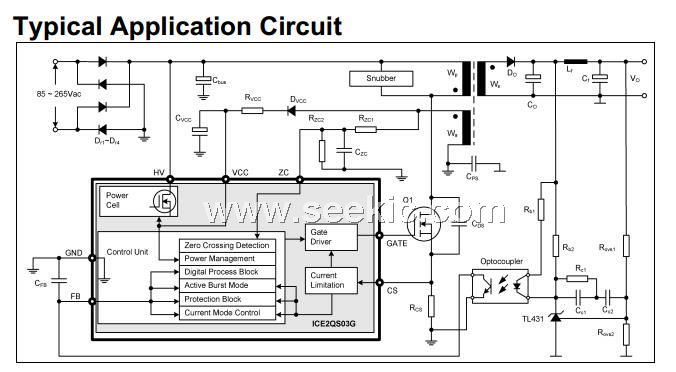

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICE2QS03G |
Infineon Technologies |
Primary & Secondary Side PWM Controllers Quasi-Resonant PWM Controller |
Data Sheet |
|
|
||||||||||||
