Product Summary
The ICE3BS02 is a high-performance Off-Line SMPS Current ModeController with integrated 500V Startup Cell.
Parametrics
ICE3BS02 Parametrics:
| Packaging | Tube |
|---|---|
| Output Isolation | Isolated |
| Frequency Range | 61kHz ~ 73kHz |
| Voltage - Input | 8.5 V ~ 22 V |
| Voltage - Breakdown | 500V |
| Voltage - Output | - |
| Power (Watts) | 900mW |
| Operating Temperature | -40°C ~ 150°C |

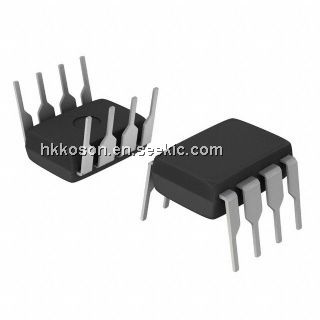

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | P-DIP-8 |
| Other Names |
ICE3BS02X ICE3BS02XK SP000014966 |
Features
ICE3BS02 Features:
? 500V Startup Cell switched off after Start Up
? Active Burst Mode for lowest Standby Power @ light load controlled by Feedback Signal
? Fast load jump response in Active Burst Mode
? Auto Restart Mode for Overtemperature Detection
? Auto Restart Mode for VCC Overvoltage Detection
? Auto Restart Mode for Overload and Open Loop
? Auto Restart Mode for VCC Undervoltage
? Blanking Window for short duration high current
? User defined Soft Start
? Minimum of external components required
? Max Duty Cycle 72%
? Overall tolerance of Current Limiting < ±5%
? Internal PWM Leading Edge Blanking
? Soft switching for low EM

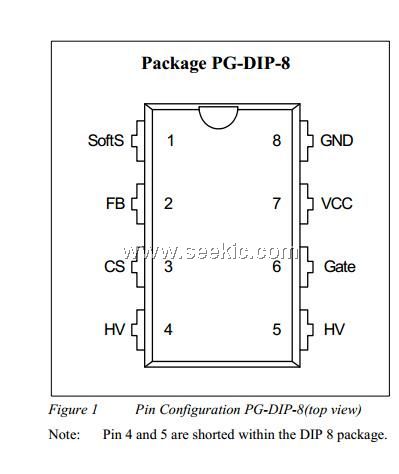

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ICE3BS02 |
Infineon Technologies |
Current Mode PWM Controllers OFF-LINE SMPS CRRNT MODE CONTROLLER |
Data Sheet |
Negotiable |
|
||||
|
ICE3BS02G |
Infineon Technologies |
Current Mode PWM Controllers OFF-LINE SMPS CRRNT MODE CONTROLLER |
Data Sheet |
Negotiable |
|
||||
|
ICE3BS02L |
Infineon Technologies |
Current Mode PWM Controllers OFF-LINE SMPS CRRNT MODE CONTROLLER |
Data Sheet |
Negotiable |
|
||||
