Product Summary
The IR2127S is a high-performance CURRENT SENSING SINGLE CHANNEL DRIVER.
Parametrics
IR2127S Parametrics:
Packaging
Tube
Configuration
High or Low Side
Input Type
Non-Inverting
Delay Time
200ns
Current - Peak
250mA
Number of Configurations
1
Number of Outputs
1
High Side Voltage - Max (Bootstrap)
600V
Voltage - Supply
12 V ~ 20 V
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Other Names
*IR2127S
Features
IR2127S Features:
? Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient
voltage dV/dv immune
? Application- specific gate drive range:12 to 20V
? Undervoltage lockout
? FAULT lead indicates shutdown has occured
? Output in phase with input
? Avaliable in Lead-Free

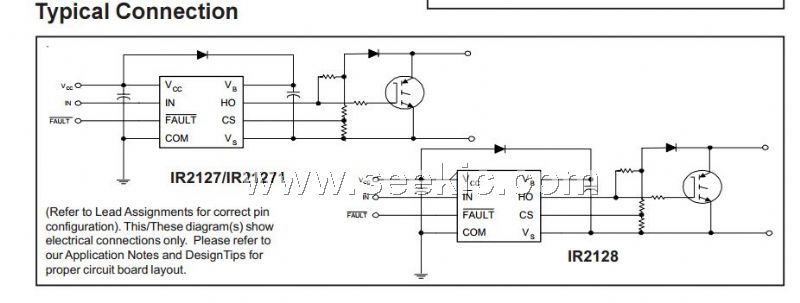

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IR2127S |
IC MOSFET DRIVER CUR-SENSE 8SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
IR2127SPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
|||||||||||||
IR2127STRPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
|||||||||||||
IR2127STR |
IC MOSFET DRIVER CUR-SENSE 8SOIC |
Data Sheet |
Negotiable |
|
