Product Summary
The ISL6569CB provides core-voltage regulation by driving two interleaved synchronous-rectified buck-converter channels in
parallel.
Parametrics
ISL6569CB Parametrics:
Packaging
Tube
PWM Type
Controller
Number of Outputs
1
Frequency - Max
2MHz
Duty Cycle
75%
Voltage - Supply
4.75 V ~ 5.25 V
Buck
Yes
Boost
No
Flyback
No
Inverting
No
Doubler
No
Divider
Yes
Cuk
No
Isolated
No
Operating Temperature
0°C ~ 70°C
Package / Case

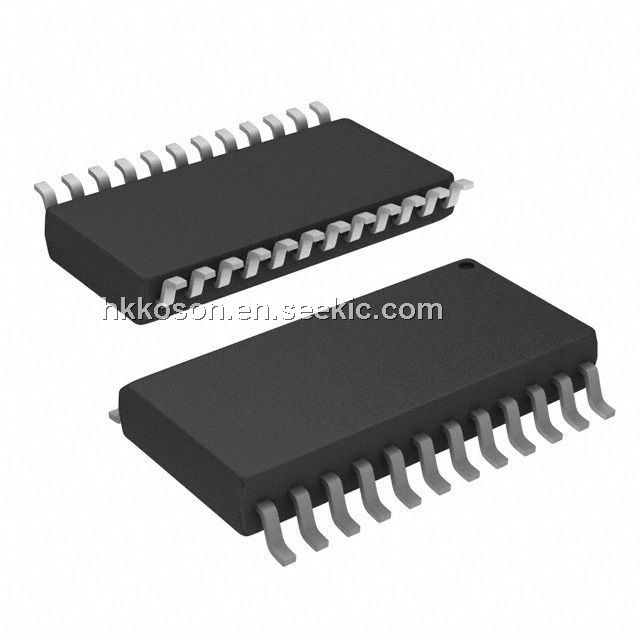

24-SOIC (0.295", 7.50mm Width)
Features
ISL6569CB Features:
? Multi-Phase Power Conversion
- 2 Phase Operation
? Active Channel Current Balancing
? Precision rDS(ON) Current Sharing
- Lossless
- Low Cost
? Input Voltage: 12V or 5V Bias
? Precision CORE Voltage Regulation
- ±1% System Accuracy Over Temperature
- Differential Remote Output Voltage Sensing
- Programmable Reference Offset
? Microprocessor Voltage Identification Input
- 5-Bit VID Input
- 0.800V to 1.550V in 25mV Steps
- Dynamic VIDTM Technology
? Programmable Droop Voltage
? Fast Transient Recovery Time
? Over Current Protection
? Digital Soft Start
? Threshold Sensitive Enable Input
? High Ripple Frequency (160kHz to 2MHz)
? Pb-Free Available (RoHS Compliant)

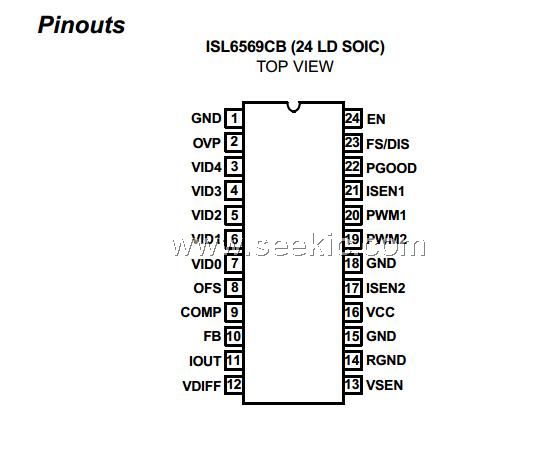

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL6569CB |
|
IC REG CTRLR DIVIDER PWM 24-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
ISL6569CB-T |
|
IC REG CTRLR DIVIDER PWM 24-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
ISL6569CBZ |
|
IC REG CTRLR DIVIDER PWM 24-SOIC |
Data Sheet |
|
|
||||||
|
ISL6569CBZ-T |
|
IC REG CTRLR DIVIDER PWM 24-SOIC |
Data Sheet |
|
|
||||||
