Product Summary

The LT1124CS8 is a high-performance Dual/Quad Low Noise,High Speed Precision Op Amps.

Parametrics

LT1124CS8 Parametrics:

Packaging Tube
Amplifier Type General Purpose
Number of Circuits 2
Output Type -
Slew Rate 4.5 V/μs
Gain Bandwidth Product 12.5MHz
-3db Bandwidth -
Current - Input Bias 8nA
Voltage - Input Offset 25μV
Current - Supply 2.3mA
Current - Output / Channel -
Voltage - Supply, Single/Dual (±) ±4 V ~ 18 V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO

Features

LT1124CS8 Features:


  • 100% Tested Low Voltage Noise:


2.7nV/√Hz Typ

4.2nV/√Hz Max


  • Slew Rate: 4.5V/μs Typ
  • Gain-Bandwidth Product: 12.5MHz Typ
  • Offset Voltage,  Prime Grade: 70μV Max


Low Grade: 100μV Max


  • High Voltage Gain: 5 Million Min
  • Supply Current Per Amplifier: 2.75mA Max
  • Common Mode Rejection: 112dB Min
  • Available in 8-Pin SO Package
  • Power Supply Rejection: 116dB Min

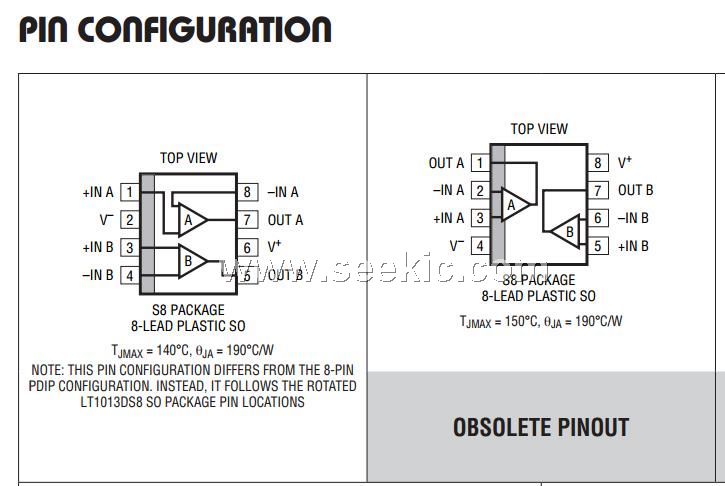

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1124CS8
LT1124CS8


IC OP-AMP LOW NOISE DUAL 8-SOIC

Data Sheet

0-1700: $2.31
LT1124CS8#PBF
LT1124CS8#PBF


IC OP-AMP LOW NOISE DUAL 8-SOIC

Data Sheet

0-1: $4.46
1-25: $2.96
25-100: $2.31
LT1124CS8#TR
LT1124CS8#TR


IC OPAMP DUAL PREC HS LN 8SOIC

Data Sheet

0-2500: $2.34
LT1124CS8#TRPBF
LT1124CS8#TRPBF


IC OP-AMP LOW NOISE DUAL 8-SOIC

Data Sheet

0-2500: $2.34
LT1124CS8-1#PBF
LT1124CS8-1#PBF


IC OPAMP DUAL PREC HS LN 8SOIC

Data Sheet

0-1: $4.46
1-25: $2.96
25-100: $2.31
LT1124CS8-1#TRPBF
LT1124CS8-1#TRPBF


IC OPAMP DUAL PREC HS LN 8SOIC

Data Sheet

0-2500: $2.34
