Product Summary
The LTC4011CFE is a high-performance High Efficiency Standalone Nickel Battery Charger.
Parametrics
LTC4011CFE Parametrics:
Packaging
Tube
Function
Charge Management
Battery Chemistry
NiCd, NiMH
Voltage - Supply
4.5 V ~ 34 V
Operating Temperature
0°C ~ 85°C
Mounting Type
Surface Mount
Package / Case

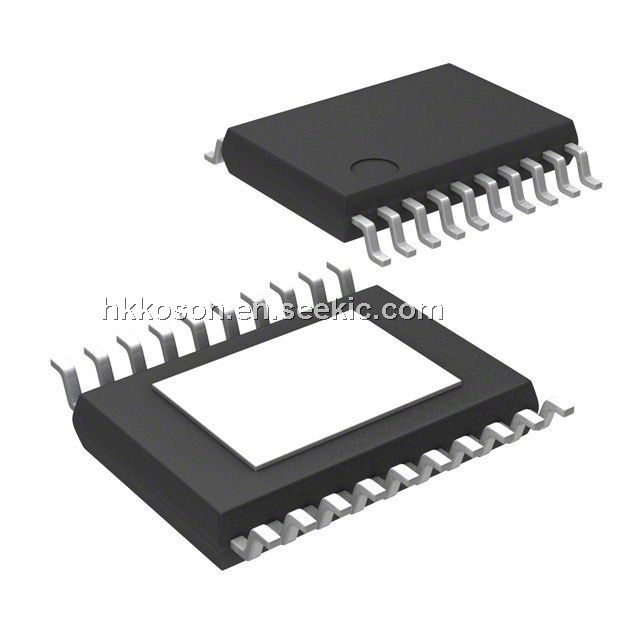

20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package
20-TSSOP-EP
Features
LTC4011CFE Features:
- Complete NiMH/NiCd Charger for 1 to 16 Cells
- No Microcontroller or Firmware Required
- 550kHz Synchronous PWM Current Source Controller
- No Audible Noise with Ceramic Capacitors
- PowerPath? Control Support
- Programmable Charge Current: 5% Accuracy
- Wide Input Voltage Range: 4.5V to 34V
- Automatic Trickle Precharge
–?V Fast Charge Termination
- Optional ?T/?t Fast Charge Termination
- Automatic NiMH Top-Off Charge
- Programmable Timer
- Automatic Recharge
- Multiple Status Outputs
- Micropower Shutdown
- 20-Lead Thermally Enhanced TSSOP Package

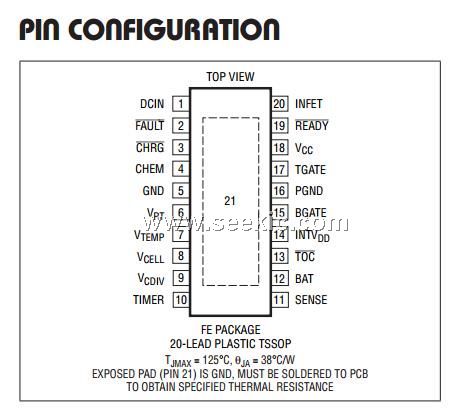

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC4011CFE |
|
IC BATT CHARGER HIEFF 20TSSOP |
Data Sheet |
|
|
||||||||||
|
LTC4011CFE#PBF |
|
IC BATT CHARGER HIEFF 20TSSOP |
Data Sheet |
|
|
||||||||||
|
LTC4011CFE#TR |
|
IC BATT CHARGER HIEFF 20TSSOP |
Data Sheet |
|
|
||||||||||
|
LTC4011CFE#TRPBF |
|
IC BATT CHARGER HIEFF 20TSSOP |
Data Sheet |
|
|
||||||||||
