Product Summary
The MAX13085EESA is a high-performance ESD-Protected, Fail-Safe, Hot-Swap, RS-485/RS-422 Transceivers.
Parametrics
MAX13085EESA Parametrics:
Packaging
Tube
Type
Transceiver
Protocol
RS422, RS485
Number of Drivers/Receivers
1/1
Duplex
-
Receiver Hysteresis
-
Data Rate
-
Voltage - Supply
4.5 V ~ 5.5 V
Operating Temperature
-
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Dynamic Catalog
RS-422, RS-485 Transceivers
Features
MAX13085EESA Features:
- +5.0V Operation
- Extended ESD Protection for RS-485/RS-422 I/O Pins ±15kV Human Body Model
- True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility
- Hot-Swap Input Structures on DE and RE
- Low-Current Shutdown Mode
- Allow Up to 256 Transceivers on the Bus
- Available in Industry-Standard 8-Pin SO Package

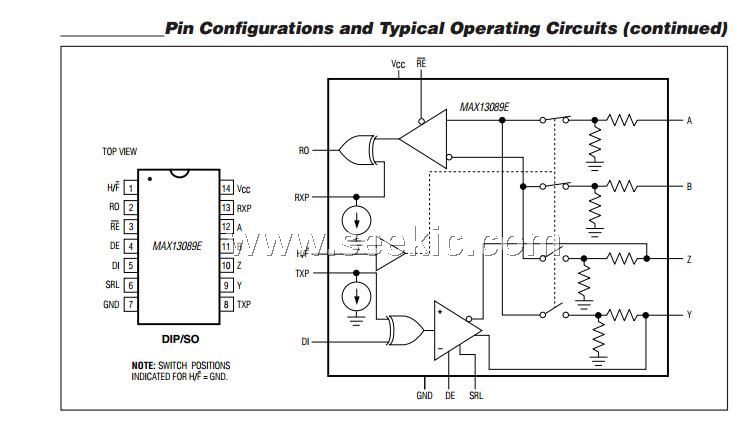

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX13085EESA |
Maxim Integrated Products |
RS-422/RS-485 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MAX13085EESA+ |
Maxim Integrated Products |
RS-422/RS-485 Interface IC Half Duplex 500Kbps 5V RS-422/485 LD/Rcv |
Data Sheet |
|
|
||||||||||||
|
MAX13085EESA+T |
Maxim Integrated Products |
RS-422/RS-485 Interface IC Half Duplex 500Kbps 5V RS-422/485 LD/Rcv |
Data Sheet |
|
|
||||||||||||
|
MAX13085EESA-T |
Maxim Integrated Products |
RS-422/RS-485 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
