Product Summary
The MAX708CSA is a high-performance Low-Cost, μP Supervisory Circuit.
Parametrics
MAX708CSA Parametrics:
Packaging
Tube
Type
Simple Reset/Power-On Reset
Number of Voltages Monitored
1
Output
Push-Pull, Push-Pull
Reset
Active High/Active Low
Reset Timeout
140 ms Minimum
Voltage - Threshold
4.4V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SOIC N
Features
MAX708CSA Features:
- Available in Tiny μMAX Package
- Guaranteed RESET Valid at VCC = 1V
- Precision Supply-Voltage Monitor-----4.40V
- 200ms Reset Pulse Width
- Debounced TTL/CMOS-Compatible Manual-Reset Input
- Active-High Reset Output
- Voltage Monitor for Power-Fail or Low-Battery Warning

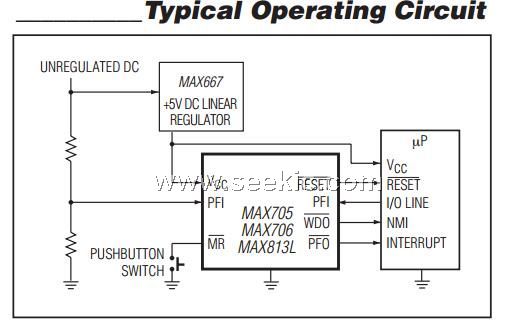

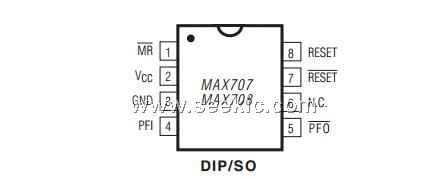

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX708CSA |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX708CSA+ |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
|
MAX708CSA+T |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
 |
MAX708CSA-T |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
||||||||||||
