Product Summary
The MC14051BDR2G is a high-performance Interface IC.
Parametrics
MC14051BDR2G Parametrics:
Packaging
Cut Tape (CT)
Function
Multiplexer/Demultiplexer
Circuit
1 x 1:8
On-State Resistance
280 Ohm
Voltage Supply Source
Dual Supply
Voltage - Supply, Single/Dual (±)
±3 V ~ 18 V
Current - Supply
-
Operating Temperature
-55°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.154", 3.90mm Width)
Supplier Device Package
16-SOIC
Dynamic Catalog
Multiplexer/Demultiplexer
Other Names
MC14051BDR2GOSCT
Features
MC14051BDR2G Features:
? Triple Diode Protection on Control Inputs
? Switch Function is Break Before Make
? Supply Voltage Range = 3.0 Vdc to 18 Vdc
? Analog Voltage Range (VDD ? VEE) = 3.0 to 18 V Note: VEE must be VSS
? Linearized Transfer Characteristics
? Low?noise ? 12 nV/√Cycle, f ≥ 1.0 kHz Typical
? These Devices are Pb?Free and are RoHS Compliant

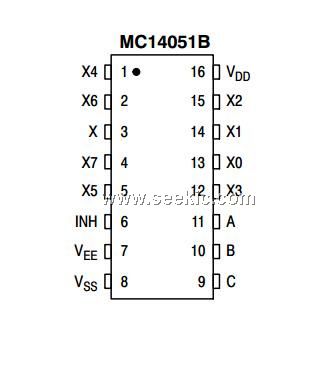

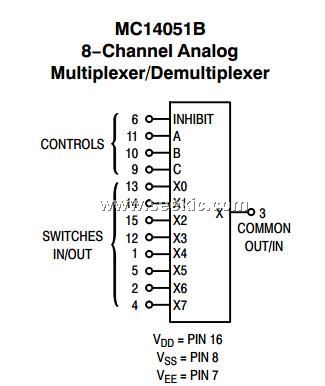

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14051BDR2G |
ON Semiconductor |
Multiplexer Switch ICs 3-18V SP8T Analog Sw -55 to 125 deg C |
Data Sheet |
|
|
||||||||||||||||
