Product Summary
The MC14066BDR2G is a high-performance Logic IC.
Parametrics
MC14066BDR2G Parametrics:
Packaging
Tape & Reel (TR)
Type
Bilateral, FET Switches
Circuit
1 x 1:1
Independent Circuits
4
Current - Output High, Low
-
Voltage Supply Source
Dual Supply
Voltage - Supply
3 V ~ 18 V
Operating Temperature
-55°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
14-SOIC (0.154", 3.90mm Width)
Supplier Device Package
14-SOICN
Dynamic Catalog
4000B
Other Names
MC14066BDR2GOS
MC14066BDR2GOS-ND
MC14066BDR2GOSTR
Features
MC14066BDR2G Features:
? Triple Diode Protection on All Control Inputs
? Supply Voltage Range = 3.0 Vdc to 18 Vdc
? Linearized Transfer Characteristics
? Low Noise ? 12 nV/√Cycle, f ≥ 1.0 kHz typical
? These Devices are Pb?Free and are RoHS Compliant

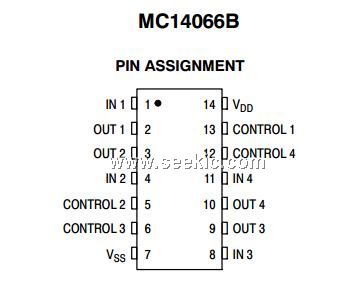

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14066BDR2G |
ON Semiconductor |
Multiplexer Switch ICs 3-18V Quad Analog SW -55 to 125deg C |
Data Sheet |
|
|
||||||||||||||||
