Product Summary

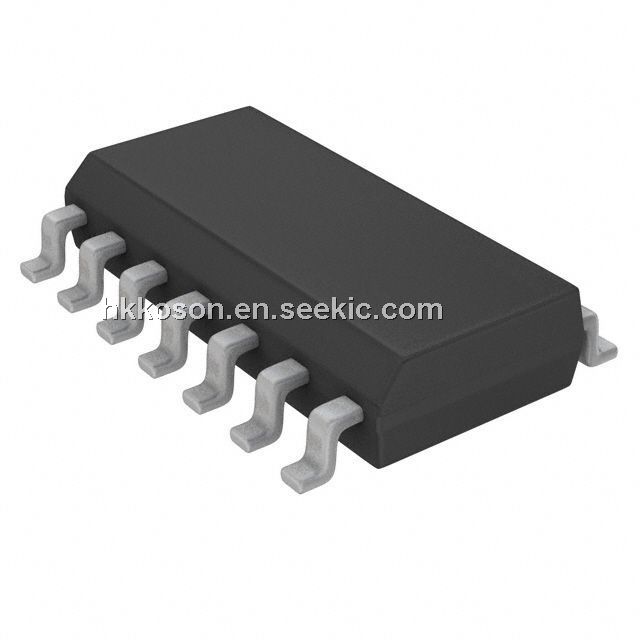

The MC33174DR2G is a high-performance Single Supply 3.0 V to 44 V,Low Power Operational Amplifier.
Parametrics
MC33174DR2G Parametrics:
Packaging
Tape & Reel (TR)
Amplifier Type
General Purpose
Number of Circuits
4
Output Type
-
Slew Rate
2.1 V/μs
Gain Bandwidth Product
1.8MHz
-3db Bandwidth
-
Current - Input Bias
20nA
Voltage - Input Offset
2mV
Current - Supply
220μA
Current - Output / Channel
27mA
Voltage - Supply, Single/Dual (±)
3 V ~ 44 V, ±1.5 V ~ 22 V
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
14-SOIC (0.154", 3.90mm Width)
Supplier Device Package
14-SOICN
Dynamic Catalog
General Purpose
Other Names
MC33174DR2GOS
MC33174DR2GOS-ND
MC33174DR2GOSTR
Features
MC33174DR2G Features:
? Low Supply Current: 180 A (Per Amplifier)
? Wide Supply Operating Range: 3.0 V to 44 V or ±1.5 V to ±22 V
? Wide Input Common Mode Range, Including Ground (VEE)
? Wide Bandwidth: 1.8 MHz
? High Slew Rate: 2.1 V/s
? Low Input Offset Voltage: 2.0 mV
? Large Output Voltage Swing: ?14.2 V to +14.2 V(with ±15 V Supplies)
? Large Capacitance Drive Capability: 0 pF to 500 pF
? Low Total Harmonic Distortion: 0.03%
? Excellent Phase Margin: 60°
? Excellent Gain Margin: 15 dB
? Output Short Circuit Protection
? ESD Diodes Provide Input Protection for Dual and Quad
? The Devices is Pb?Free, Halogen Free/BFR Free and are RoHS Compliant

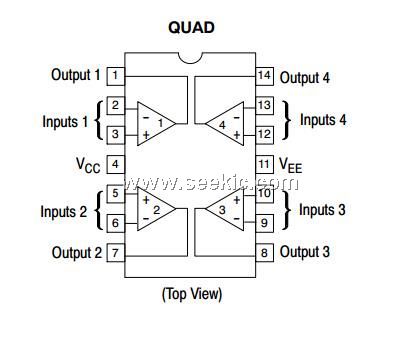

Diagrams
