Product Summary
The NJM2068D is a high-performance LOW-NOISE DUAL OPERATIONAL AMPLIFIER.
Parametrics
NJM2068D Parametrics:
Packaging
Tube
Amplifier Type
General Purpose
Number of Circuits
2
Output Type
-
Slew Rate
6 V/μs
Gain Bandwidth Product
27MHz
-3db Bandwidth
-
Current - Input Bias
150nA
Voltage - Input Offset
300μV
Current - Supply
5mA
Current - Output / Channel
-
Voltage - Supply, Single/Dual (±)
±4 V ~ 18 V
Operating Temperature
-20°C ~ 75°C
Mounting Type
Through Hole
Package / Case

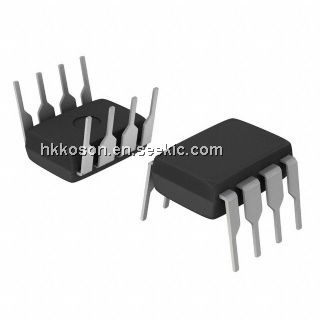

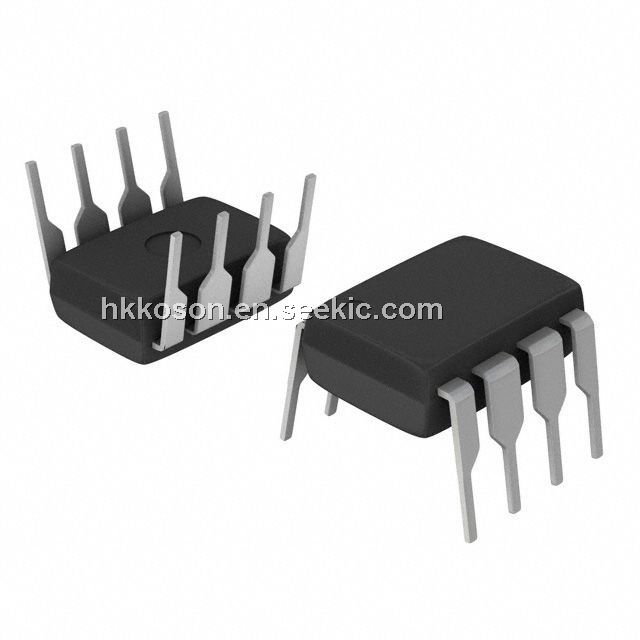

8-DIP (0.300", 7.62mm)
Supplier Device Package
8-DIP
Other Names
NJM#2068D
NJM#2068D-ND
NJM2068D#
NJM2068D#-ND
Features
NJM2068D Features:
● Operating Voltage : ±4V~±18V
● Low Total Harmonic Distortion : 0.001%
● Low Noise Voltage: 0.56μV (FLAT+JISA)
● High Slew Rate: 6V/μs
● Unity Gain Bandwidth: 27MHz (f=10kHz)
● Bipolar Technology
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2068DD |
NJR |
Operational Amplifiers - Op Amps Dual Low Noise |
Data Sheet |
|
|
||||||||||||
 |
NJM2068D# |
NJR |
IC DUAL LOW-NOISE OP AMP 8-DIP |
Data Sheet |
|
|
||||||||||||
|
NJM2068D |
NJR |
Operational Amplifiers - Op Amps Dual Low Noise |
Data Sheet |
|
|
||||||||||||
