Product Summary

The OP747ARUZ is a high-performance Single-Supply Operational Amplifier.

Parametrics

OP747ARUZ Parametrics:

Packaging   Tube
Amplifier Type General Purpose
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 0.2 V/μs
Gain Bandwidth Product 700kHz
-3db Bandwidth -
Current - Input Bias 5nA
Voltage - Input Offset 30μV
Current - Supply 320μA
Current - Output / Channel 30mA
Voltage - Supply, Single/Dual (±) 2.7 V ~ 30 V, ±1.35 V ~ 15 V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 14-TSSOP
Dynamic Catalog General Purpose

Features

OP747ARUZ Features:

  • Low Offset Voltage: 100 V Max
  • Low Input Bias Current: 10 nA Max
  • Single-Supply Operation:  V to 30 V
  • Dual-Supply Operation:  ±1.5V to ±15 V
  • Low Supply Current: 300 A/Amp Max
  • Unity Gain Stable
  • No Phase Reversal

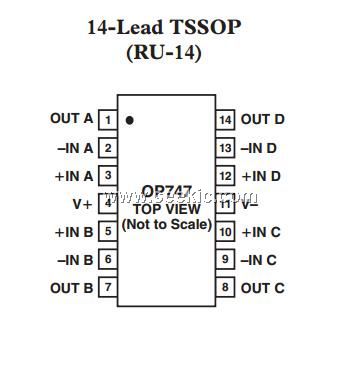

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OP747ARUZ
OP747ARUZ

IC OPAMP GP R-R 700KHZ 14TSSOP
Data Sheet
0-1: $4.31
1-10: $3.88
10-100: $3.19
100-250: $2.93
250-500: $2.67
500-1000: $2.33
1000-2500: $2.30
OP747ARUZ-REEL
OP747ARUZ-REEL

IC OPAMP GP R-R 700KHZ 14TSSOP
Data Sheet
0-2500: $2.30
