Product Summary
The SMBJ30A-E3/52T is a Surface Mount TRANSZORB Transient Voltage Suppressor. The applications of the device include sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Parametrics
SMBJ30A-E3/52T absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000 μs waveform, PPPM: 600 W ; (2)Peak forward surge current 8.3 ms single half sine-wave uni-directional only, IFSM: 100 A ; (3)Operating junction and storage temperature range, TJ, TSTG: - 55 to + 150℃.
Features
SMBJ30A-E3/52T features: (1)Low profile package; (2)Ideal for automated placement; (3)Glass passivated chip junction; (4)Available in uni-directional and bi-directional; (5)600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %; (6)Excellent clamping capability; (7)Very fast response time; (8)Low incremental surge resistance; (9)Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃; (10)AEC-Q101 qualified.

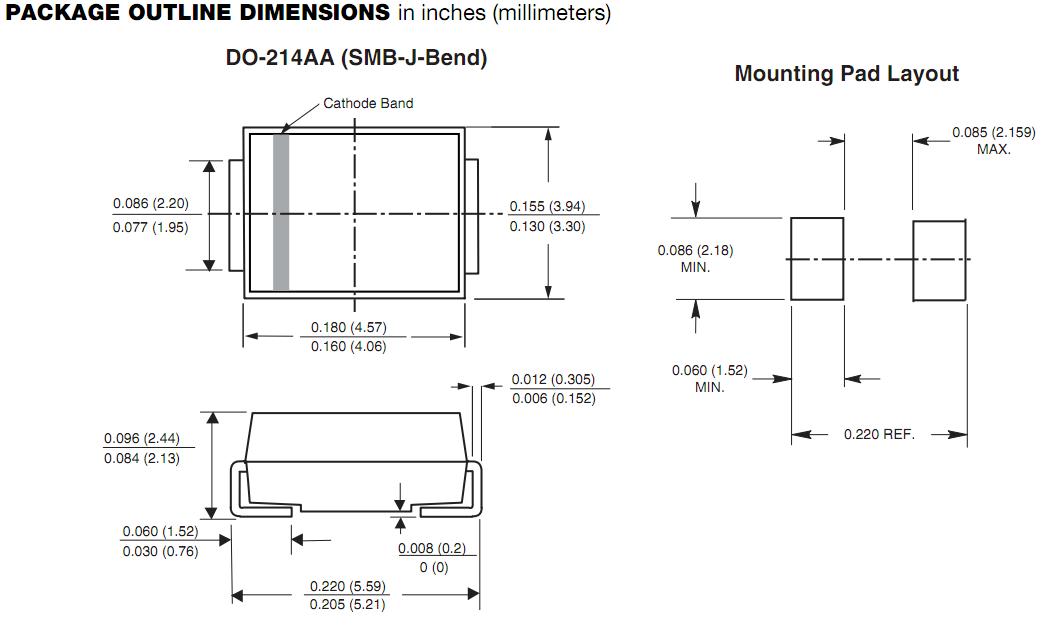

Diagrams
 |
