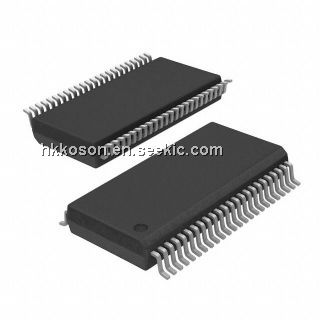

SN74LVTH162245DGGR

IC BUS TRANSCVR 16BIT 48TSSOP,-40°C ~ 85°C, SN74LVTH162245DGGR

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.28~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3000 :	0.30 / Piece
3000 ~ 10000 :	0.29 / Piece
10000 ~ 50000 :	0.28 / Piece

PartNumber:: SN74LVTH162245DGGR

Brand:: Texas Instruments - TI | Pack: | D/C:

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Winnie's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2014-03-04

From Other Seller

Part Number:SN74LVTH162245DGGR
US $0.28 - 0.30
Quantity:

piece

Product Summary

The SN74LVTH162245DGGR is a high-performance BUS TRANSCEIVERS WITH 3-STATE OUTPUTS.

Parametrics

SN74LVTH162245DGGR Parametrics:

Packaging	Tape & Reel (TR)
Logic Type	Transceiver, Non-Inverting
Number of Elements	2
Number of Bits per Element	8
Current - Output High, Low	12mA, 12mA; 32mA, 64mA
Voltage - Supply	2.7 V ~ 3.6 V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package	48-TSSOP
Dynamic Catalog	74LVTH
Other Names	296-8669-2

Features

SN74LVTH162245DGGR Features:

? Members of the Texas Instruments Widebus?Family
? A-Port Outputs Have Equivalent 22-Ω Series Resistors, So No External Resistors Are Required
? Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC)
? Support Unregulated Battery Operation Down to 2.7 V
? Typical VOLP(Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
? Ioff and Power-Up 3-State Support Hot Insertion
? Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors
? Distributed VCC and GND Pins Minimize High-Speed Switching Noise
? Flow-Through Architecture Optimizes PCB Layout
? Latch-Up Performance Exceeds 500 mA Per JESD 17
? ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
