Product Summary

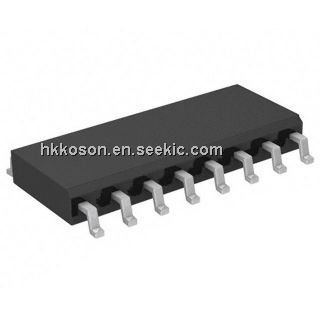

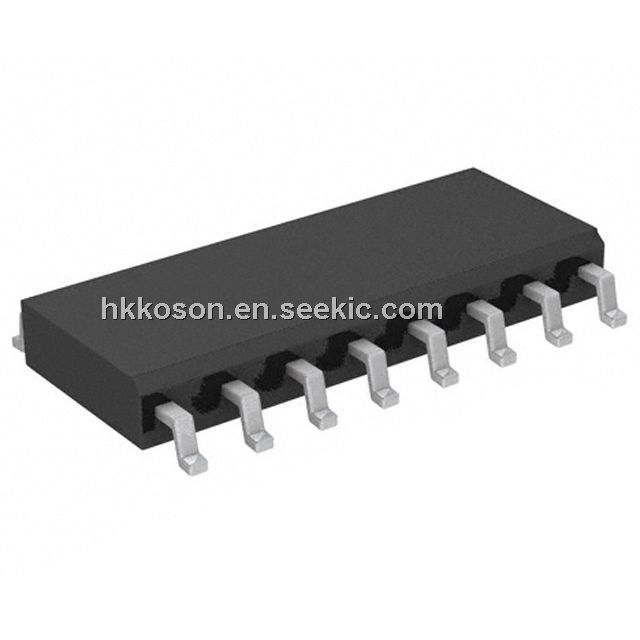

The CD4051BM is a high-performance Interface IC.
Parametrics
CD4051BM Parametrics:
Packaging
Tube
Function
Multiplexer/Demultiplexer
Circuit
1 x 8:1
On-State Resistance
240 Ohm
Voltage Supply Source
Single, Dual Supply
Voltage - Supply, Single/Dual (±)
3 V ~ 20 V, ±2.5 V ~ 9 V
Current - Supply
-
Operating Temperature
-55°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.154", 3.90mm Width)
Supplier Device Package
16-SOIC N
Dynamic Catalog
Multiplexer/Demultiplexer
Other Names
296-25947-5
CD4051BM-ND
Features
CD4051BM Features:
? Wide Range of Digital and Analog Signal Levels
- Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 20V
- Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤20VP-P
? Low ON Resistance, 125Ω (Typ) Over 15VP-P Signal Input Range for VDD-VEE = 18V
? High OFF Resistance, Channel Leakage of ±100pA (Typ) at VDD-VEE = 18V
? Logic-Level Conversion for Digital Addressing Signals of3V to 20V (VDD-VSS = 3V to 20V) to Switch Analog
Signals to 20VP-P (VDD-VEE = 20V)
? Matched Switch Characteristics, rON = 5Ω (Typ) for VDD-VEE = 15V
? Very Low Quiescent Power Dissipation Under All DigitalControl Input and Supply Conditions, 0.2μW (Typ)
at VDD-VSS = VDD-VEE = 10V
? Binary Address Decoding on Chip
? 5V, 10V, and 15V Parametric Ratings
? 100% Tested for Quiescent Current at 20V
? Break-Before-Make Switching Eliminates Channel Overlap

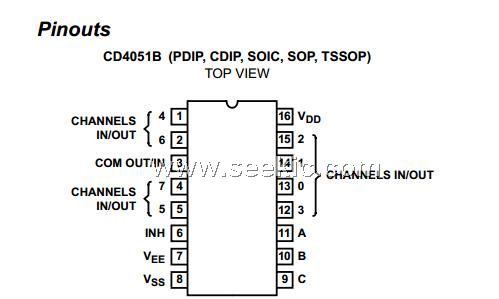

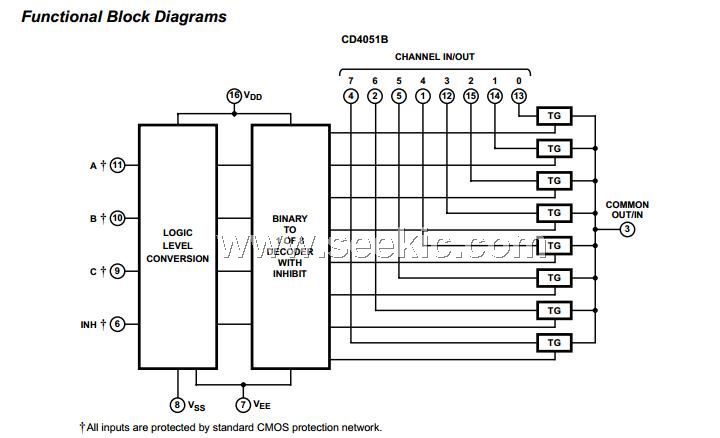

Diagrams
