Product Summary
The LT1210CR is a current feedback amplifier with highoutput current and excellent large-signal characteristics.
The combination of high slew rate, 1.1A output drive and ±15V operation enables the device to deliver significant power at
frequencies in the 1MHz to 2MHz range. Shortcircuit protection and thermal shutdown ensure the device’s ruggedness.
Parametrics
LT1210CR Parametrics:
Packaging
Tube
Amplifier Type
Current Feedback
Number of Circuits
1
Output Type
-
Slew Rate
90 V/μs
Gain Bandwidth Product
-
-3db Bandwidth
55MHz
Current - Input Bias
10μA
Voltage - Input Offset
3mV
Current - Supply
35mA
Current - Output / Channel
2A
Voltage - Supply, Single/Dual (±)
10 V ~ 30 V, ±5 V ~ 15 V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount
Package/Case
TO-263-8, D2Pak (7 Leads + Tab), TO-263CA
Supplier Device Package
DDPAK-7
Features
LT1210CR Features:
- 1.1A Minimum Output Drive Current
- 35MHz Bandwidth, AV = 2, RL = 10Ω
- 900V/μs Slew Rate, AV = 2, RL = 10Ω
- High Input Impedance: 10MΩ
- Wide Supply Range: ±5V to ±15V(TO-220 and DD Packages)
- Enhanced θJA SO-16 Package for ±5V Operation
- Shutdown Mode: IS < 200μA
- Adjustable Supply Current
- Stable with CL = 10,000pF
- Available in 7-Lead DD, TO-220 and16-Lead SO Packages

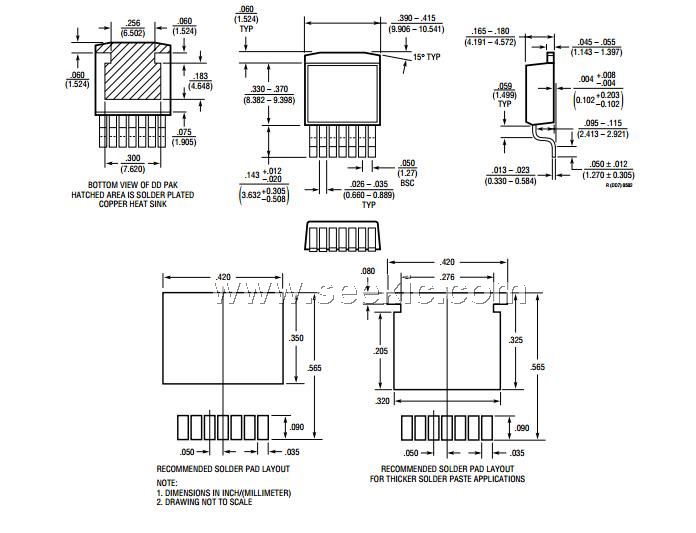

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

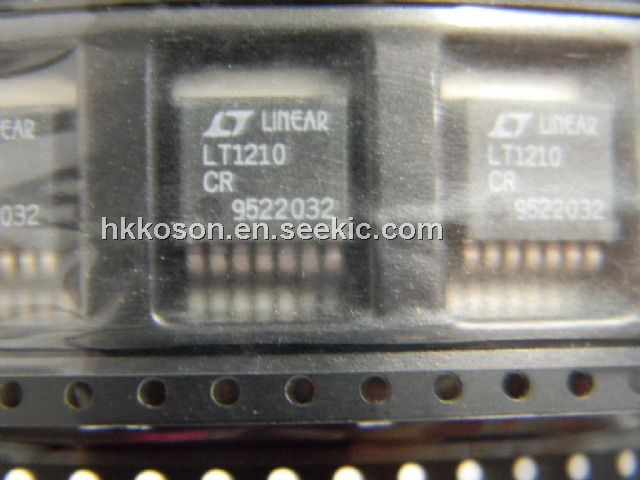

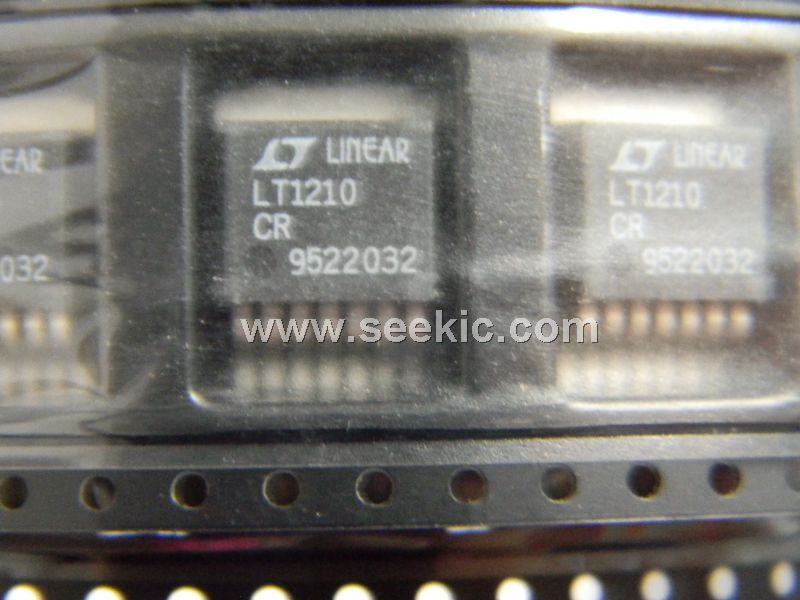

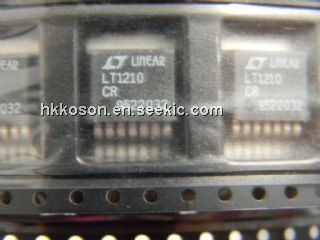

 LT1210CR |
|
IC 35MHZ 1.1 AMP AMPLIFIER 7 DD |
Data Sheet |
|
|
||||||||||
|
LT1210CR#PBF |
|
IC 35MHZ 1.1 AMP AMPLIFIER 7 DD |
Data Sheet |
|
|
||||||||||
|
LT1210CR#TR |
|
IC AMP CURR FEEDBACK 1.1A 7DD |
Data Sheet |
|
|
||||||||||
|
LT1210CR#TRPBF |
|
IC 35MHZ 1.1 AMP AMPLIFIER 7 DD |
Data Sheet |
|
|
||||||||||
