Product Summary
The MSP430G2231IPW14R is a high-performance MIXED SIGNAL MICROCONTROLLER.
Parametrics
MSP430G2231IPW14R Parametrics:
Packaging
Tape & Reel (TR)
Core Processor
-
Core Size
16-Bit
Speed
16MHz
Connectivity
I2C, SPI
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Number of I /O
10
Program Memory Size
2KB (2K x 8)
Program Memory Type
FLASH
EEPROM Size
-
RAM Size
128 x 8
Voltage - Supply (Vcc/Vdd)
1.8 V ~ 3.6 V
Data Converters
A/D 8x10b
Oscillator Type
Internal
Operating Temperature
-40°C ~ 85°C
Package / Case
14-TSSOP (0.173", 4.40mm Width)
Dynamic Catalog
MSP430G2xx
Other Names
296-31697-2
MSP430G2231IPW14R-ND
Features
MSP430G2231IPW14R Features:
- Ultra-Low Power Consumption
– Active Mode: 220 μA at 1 MHz, 2.2 V
– Standby Mode: 0.5 μA
– Off Mode (RAM Retention): 0.1 μA
- Five Power-Saving Modes
- Ultra-Fast Wake-Up From Standby Mode in Less Than 1 μs
- 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
- Basic Clock Module Configurations
– Internal Frequencies up to 16 MHz With One Calibrated Frequency
– Internal Very Low Power Low-Frequency (LF) Oscillator
– 32-kHz Crystal
– External Digital Clock Source

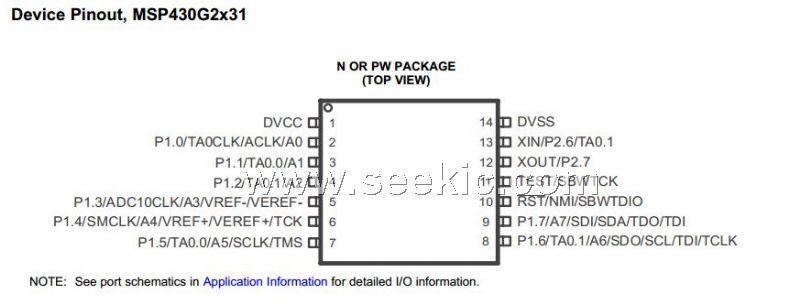

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MSP430G2231IPW14R |
Texas Instruments |
16-bit Microcontrollers (MCU) Mixed Signal Micro controller |
Data Sheet |
|
|
||||||||||||
