Product Summary
The NCV1117DT18T5G is a high-performance 1.0 A Low-Dropout Positive Fixed and Adjustable Voltage Regulator.
Parametrics
NCV1117DT18T5G Parametrics:
Packaging
Tape & Reel (TR)
Regulator Topology
Positive Fixed
Voltage - Output
1.8V
Current - Output
1A
Voltage - Dropout (Typical)
1.07V @ 800mA
Number of Regulators
1
Voltage - Input
Up to 20V
Current - Limit (Min)
1A
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package
DPAK-3
Dynamic Catalog
1.8V to 2.3V
Other Names
NCV1117DT18T5G-ND
NCV1117DT18T5GOSTR
Features
NCV1117DT18T5G Features:
? Output Current in Excess of 1.0 A
? 1.2 V Maximum Dropout Voltage at 800 mA Over Temperature
? Adjustable Output Voltage Option
? No Minimum Load Requirement for Fixed Voltage Output Devices
? Reference/Output Voltage Trimmed to ±1.0%
? Current Limit, Safe Operating and Thermal Shutdown Protection
? Pb-Free Device

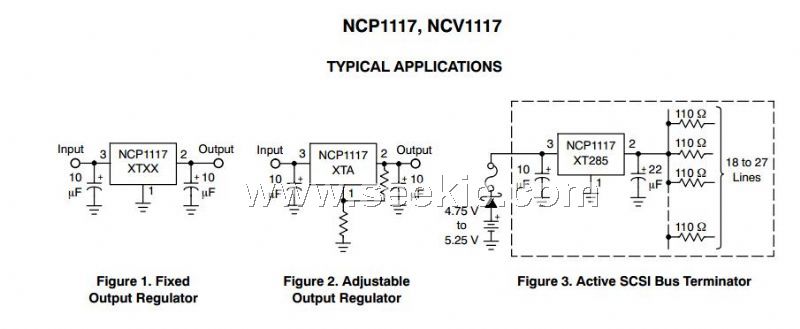

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NCV1117DT18T5G |
ON Semiconductor |
Low Dropout (LDO) Regulators 1.8V 1.0A Automotive |
Data Sheet |
|
|
||||||||||||
